GD75PIX120C6SN - IGBT

STARPOWER

📥 Download Datasheet

GD75PIX120C6SN Datasheet Preview — Preview of GD75PIX120C6SN PDF

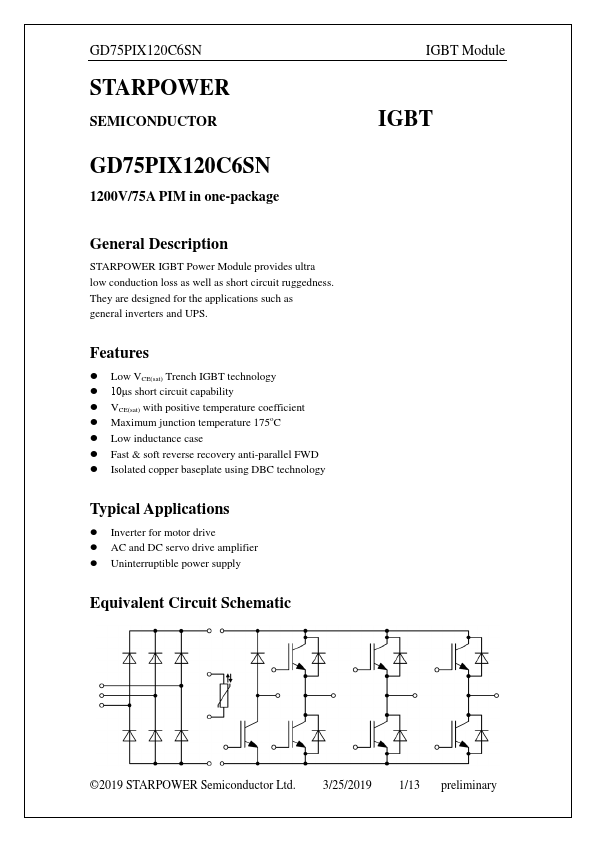

datasheet Preview Page 2

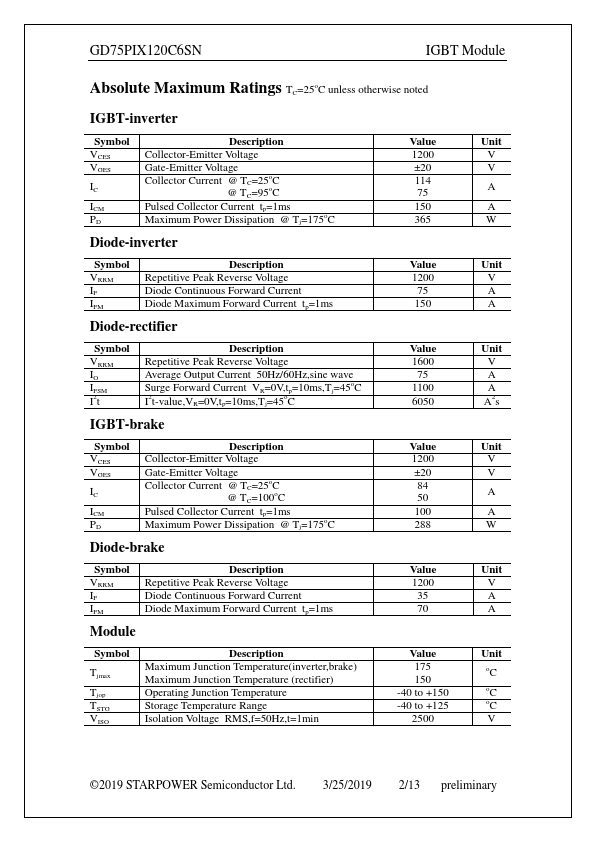

datasheet Preview Page 3

Datasheet Details

Part number	GD75PIX120C6SN
Manufacturer	STARPOWER
File Size	489.22 KB
Description	IGBT
Datasheet	GD75PIX120C6SN-STARPOWER.pdf

GD75PIX120C6SN Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
