GD75PIT120C6SN_G8 - IGBT

STARPOWER

📥 Download Datasheet

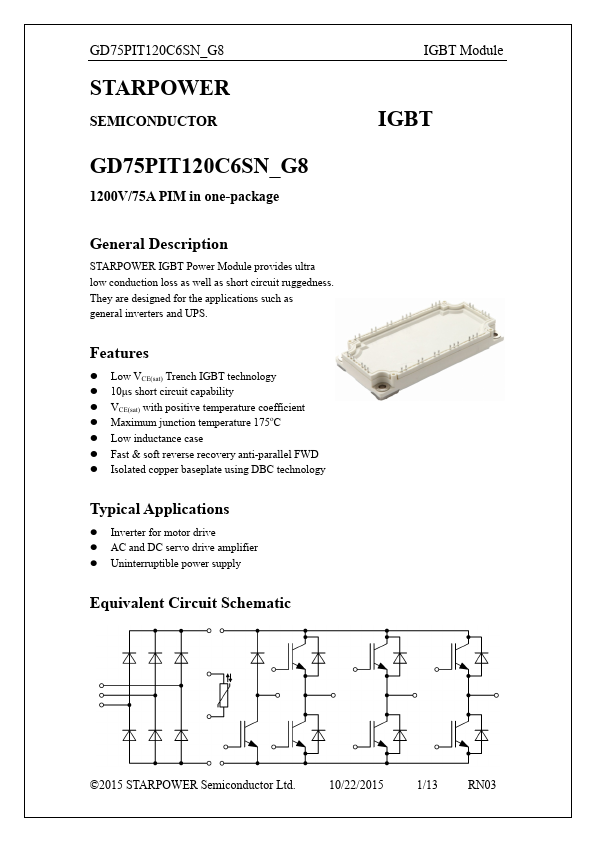

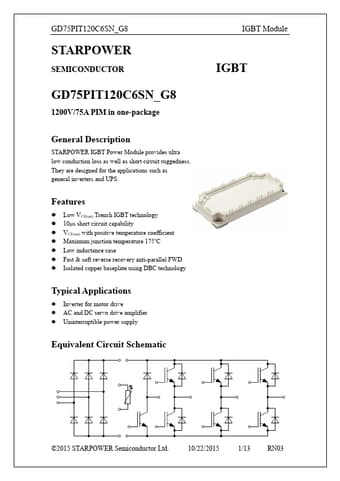

GD75PIT120C6SN_G8 Datasheet Preview — Preview of GD75PIT120C6SN_G8 PDF

datasheet Preview Page 2

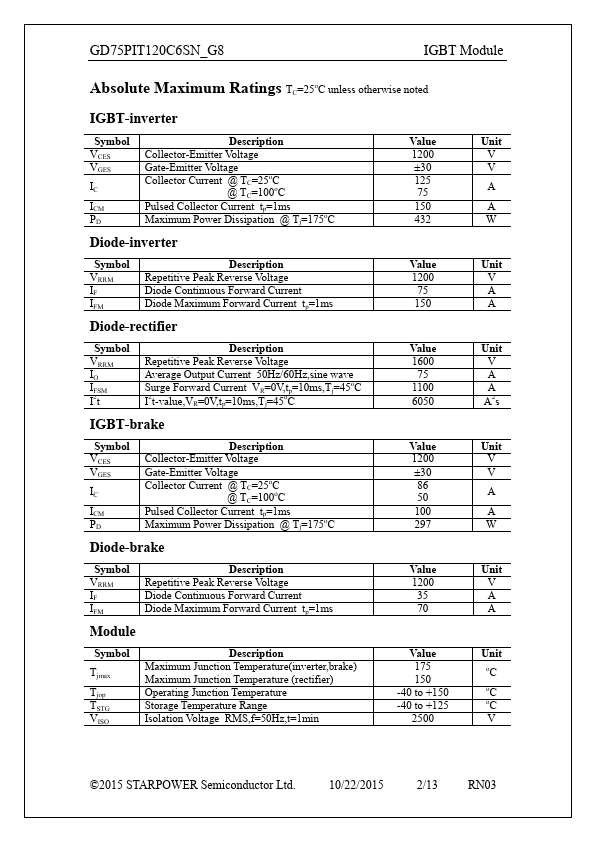

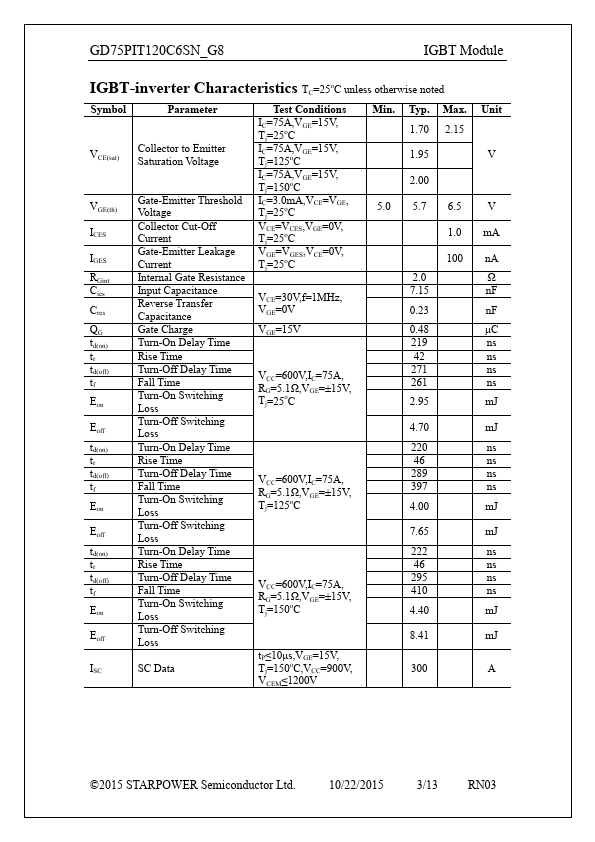

datasheet Preview Page 3

Datasheet Details

Part number	GD75PIT120C6SN_G8
Manufacturer	STARPOWER
File Size	638.59 KB
Description	IGBT
Datasheet	GD75PIT120C6SN_G8-STARPOWER.pdf

GD75PIT120C6SN_G8 Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
