2STA2120 Datasheet, Transistor, STMicroelectronics

2STA2120 Features

  • Transistor
  • High breakdown voltage VCEO = 250 V Complementary to 2STC5948 Fast-switching speed Typical ft = 25 MHz Fully characterized at 125 oC 3

PDF File Details

Part number:

2STA2120

Manufacturer:

STMicroelectronics ↗

File Size:

194.43kb

Download:

📄 Datasheet

Description:

High power pnp epitaxial planar bipolar transistor. Figure 1. The device is a PNP transistor manufactured using new BiT-LA (Bipolar transistor for linear amplifier) technology. The resu

Datasheet Preview: 2STA2120 📥 Download PDF (194.43kb)

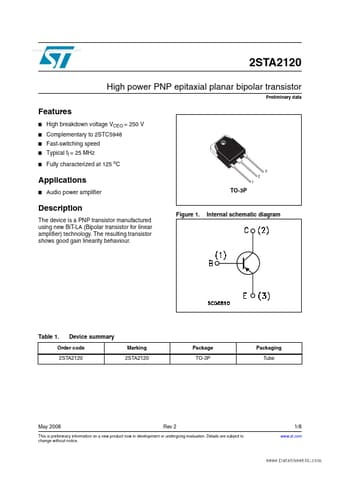

Page 2 of 2STA2120 Page 3 of 2STA2120

2STA2120 Application

  • Applications
  • Audio power amplifier TO-3P Description Figure 1. The device is a PNP transistor manufactured using new BiT-LA (Bipolar tr
