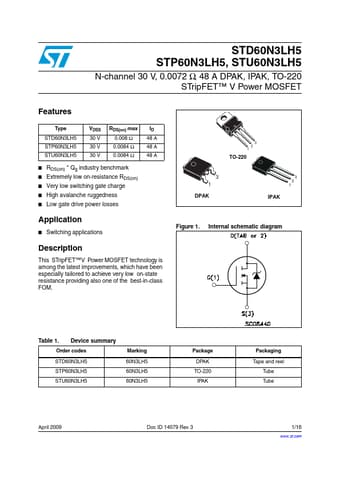

60N3LH5 Datasheet Preview Page 2 60N3LH5 Datasheet Preview Page 3

Datasheet Details

Part number:

60N3LH5

Manufacturer:

STMicroelectronics ↗

File Size:

347.06 KB

Description:

N-channel power mosfet.

60N3LH5, N-channel Power MOSFET

This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM.

3 2 1 TO-220 3 1 DPAK 3 2 1 IPAK Figure 1.

Internal schematic diagram Table 1.

Device summary Order

60N3LH5 Features

* Type STD60N3LH5 STP60N3LH5 STU60N3LH5 VDSS 30 V 30 V 30 V RDS(on) max 0.008 Ω 0.0084 Ω 0.0084 Ω ID 48 A 48 A 48 A

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* Very low switching gate charge

* High avalanche ruggedness

* Low gate drive power l
