AM1517-025 - RF & MICROWAVE TRANSISTORS

AM1517-025 Description

AM1517-025 RF & MICROWAVE TRANSISTORS SATELLITE COMMUNICATIONS APPLICATIONS * REFRACTORY/GOLD METALLIZATION * EMITTER SITE BALLASTED .
The AM1517-025 power transistor is designed specifically for Satellite communications applications in the 1.

AM1517-025 Applications

* REFRACTORY/GOLD METALLIZATION
* EMITTER SITE BALLASTED
* ∞:1 VSWR CAPABILITY
* LOW THERMAL RESISTANCE
* INPUT/OUTPUT MATCHING
* OVERLAY GEOMETRY
* METALLIC/CERAMIC HERMETIC PACKAGE
* POUT = 25 W MIN. WITH 8.5 dB GAIN SO42 hermetical

📥 Download Datasheet

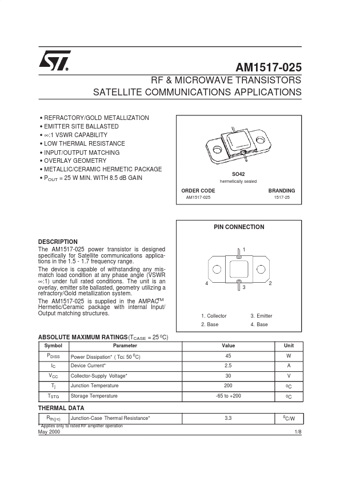

Preview of AM1517-025 PDF
datasheet Preview Page 2 datasheet Preview Page 3
