FC106 - Fibre Channel Transceiver

STMicroelectronics

FC106 Datasheet Preview — Preview of FC106 PDF

Datasheet Details

Part number	FC106
Manufacturer	STMicroelectronics ↗
File Size	210.55 KB
Description	Fibre Channel Transceiver
Datasheet	FC106_STMicroelectronics.pdf

FC106 Product details

Description

- - - - - - - - - - - - - - - - - - - - - - 4 Interface Diagram - - - - - - - - - - - - - - - - - - - - - - - 6 Functional Description - - - - - - - - - - - - - - - - - - - - 7 3.1 Block diagram - - - - - - - - - - - - - - - - - - - - - - - 8 3.2 Input latches - - - - - - - - - - - - - - - - - - - - - - - - 8 3.3 8bit/10bit Encoder/Decoder - - - - - - - - - - - - - - - - - 9 3.4 DLL clock generator - - - - - - - - - - - - - - - - - - - - 9 3.5 Serializer functional description and reference cloc

Features

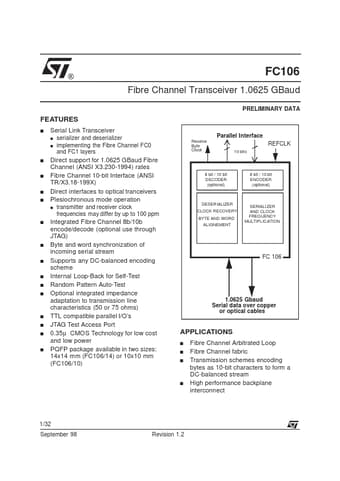

s Serial Link Transceiver q q serializer and deserializer implementing the Fibre Channel FC0 and FC1 layers Parallel Interface Receive Byte Clock REFCLK 10 bits s s s s Direct support for 1.0625 GBaud Fibre Channel (ANSI X3.230-1994) rates Fibre Channel 10-bit Interface (ANSI TR/X3.18-199X) Direct interfaces to optical tranceivers Plesiochronous mode operation q 8 bit / 10 bit.
