FC107 - PNP Transistor

Sanyo Semicon Device

📥 Download Datasheet

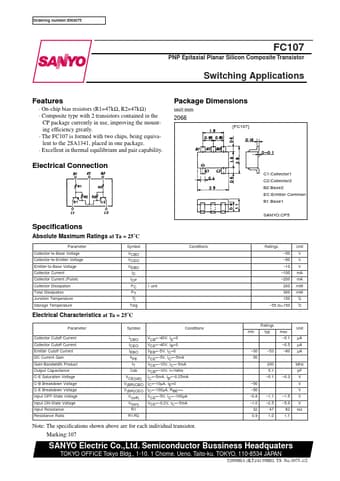

FC107 Datasheet Preview — Preview of FC107 PDF

datasheet Preview Page 2

Datasheet Details

Part number	FC107
Manufacturer	Sanyo Semicon Device
File Size	43.95 KB
Description	PNP Transistor
Datasheet	FC107_SanyoSemiconDevice.pdf

FC107 Product details

Features

On-chip bias resistors (R1=47kΩ, R2=47kΩ).
Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC107 is formed with two chips, being equivalent to the 2SA1341, placed in one package.
Excellent in thermal equilibrium and pair capability. Package Dimensions unit:mm 2066 [FC107] Electrical Connection C1:Collector1 C2:Collector2 B2:Base2 EC:Emitter Common B1:Base1 SANYO:CP5 Specifications Absolute Ma.
