FC109 - PNP Transistor

Sanyo Semicon Device

📥 Download Datasheet

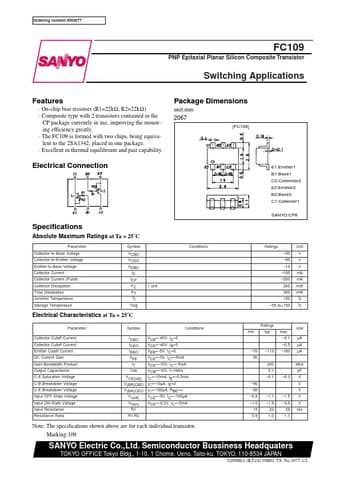

FC109 Datasheet Preview — Preview of FC109 PDF

datasheet Preview Page 2

Datasheet Details

Part number	FC109
Manufacturer	Sanyo Semicon Device
File Size	44.61 KB
Description	PNP Transistor
Datasheet	FC109_SanyoSemiconDevice.pdf

FC109 Product details

Features

On-chip bias resistors (R1=22kΩ, R2=22kΩ).
Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC109 is formed with two chips, being equivalent to the 2SA1342, placed in one package.
Excellent in thermal equilibrium and pair capability. Package Dimensions unit:mm 2067 [FC109] Electrical Connection E1:Emitter1 B1:Base1 C2:Collerctor2 E2:Emitter2 B2:Base2 C1:Collector1 SANYO:CP6 Specifications Abs.
