FC1325AG Datasheet - Key Technology

FC1325AG - Single Chip USB Flash Drive Controller

: The KTC-FC1325AG single chip controller is designed for the high capacity and high performance USB Interface Flash Drives.

The controller is fully compatible with USB 1.1/2.0 interface, and support the USB Mass Storage Command Protocol.

The controller can support HDD/FDD function via one switch.

B

FC1325AG Features

* 1. USB Interface: 1) Support Standard USB (Universal Serial Bus) interface. 2) Fully compatible with USB Spec. 1.1/2.0 3) Support USB Mass Storage Command Protocol. 4) High Speed (480 Mbits/sec), Full Speed (12 Mbits/sec) and Low Speed (1.5 Mbits/sec) transfer support. 5) 4 End points support: Cont

FC1325AG_KeyTechnology.pdf

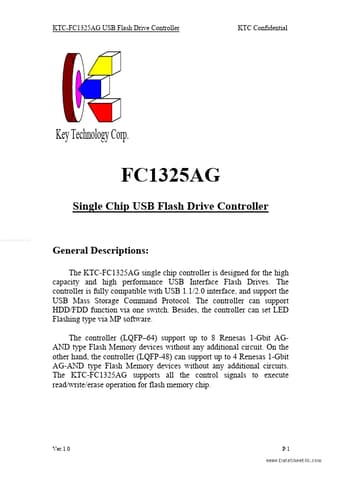

Preview of FC1325AG PDF
FC1325AG Datasheet Preview Page 2 FC1325AG Datasheet Preview Page 3

Datasheet Details

Part number:

FC1325AG

Manufacturer:

Key Technology

File Size:

511.54 KB

Description:

Single chip usb flash drive controller.
