FC133 - PNP Transistor

Sanyo Semicon Device

📥 Download Datasheet

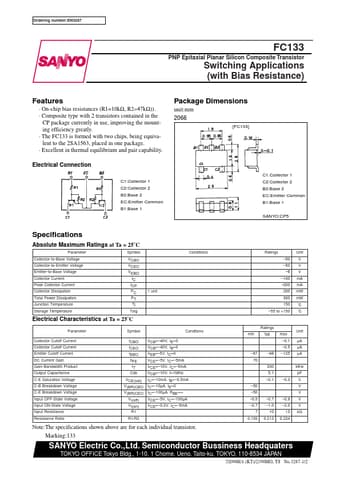

FC133 Datasheet Preview — Preview of FC133 PDF

datasheet Preview Page 2

Datasheet Details

Part number	FC133
Manufacturer	Sanyo Semicon Device
File Size	44.30 KB
Description	PNP Transistor
Datasheet	FC133_SanyoSemiconDevice.pdf

FC133 Product details

Features

On-chip bias resistances (R1=10kΩ, R2=47kΩ)).
Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC133 is formed with two chips, being equivalent to the 2SA1563, placed in one package.
Excellent in thermal equilibrium and pair capability. Electrical Connection C1:Collector 1 C2:Collector 2 B2:Base 2 EC:Emitter Common B1:Base 1 C1:Collector 1 C2:Collector 2 B2:Base 2 EC:Emitter Common B1:Base 1 SAN.
