FC13 - N-Channel FET

Sanyo Semicon Device

📥 Download Datasheet

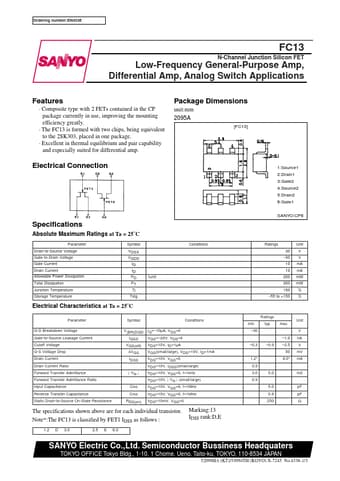

FC13 Datasheet Preview — Preview of FC13 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FC13
Manufacturer	Sanyo Semicon Device
File Size	102.06 KB
Description	N-Channel FET
Datasheet	FC13_SanyoSemiconDevice.pdf

FC13 Product details

Features

Composite type with 2 FETs contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC13 is formed with two chips, being equivalent to the 2SK303, placed in one package.
Excellent in thermal equilibrium and pair capability and especially suited for differential amp. Package Dimensions unit:mm 2095A [FC13] Electrical Connection 1:Source1 2:Drain1 3:Gate2 4:Source2 5:Drain2 6:Gate1 SANYO:CP6 Specifications Absolute Maximum Ratings at Ta = 2.
