FC131 - PNP Transistor

Sanyo Semicon Device

📥 Download Datasheet

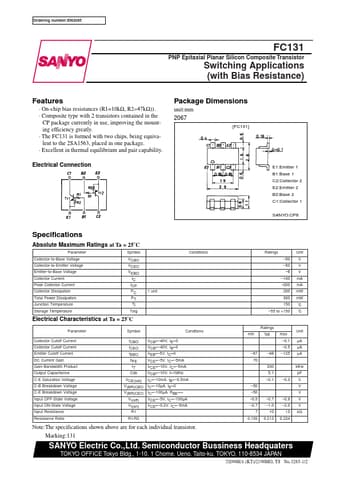

FC131 Datasheet Preview — Preview of FC131 PDF

datasheet Preview Page 2

Datasheet Details

Part number	FC131
Manufacturer	Sanyo Semicon Device
File Size	37.43 KB
Description	PNP Transistor
Datasheet	FC131_SanyoSemiconDevice.pdf

FC131 Product details

Features

On-chip bias resistances (R1=10kΩ, R2=47kΩ)).
Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC131 is formed with two chips, being equivalent to the 2SA1563, placed in one package.
Excellent in thermal equilibrium and pair capability. Electrical Connection Package Dimensions unit:mm 2067 [FC131] E1:Emitter 1 B1:Base 1 C2:Collector 2 E2:Emitter 2 B2:Base 2 C1:Collector 1 SANYO:CP6 Specificat.
