FC130 - NPN Transistor

Sanyo Semicon Device

📥 Download Datasheet

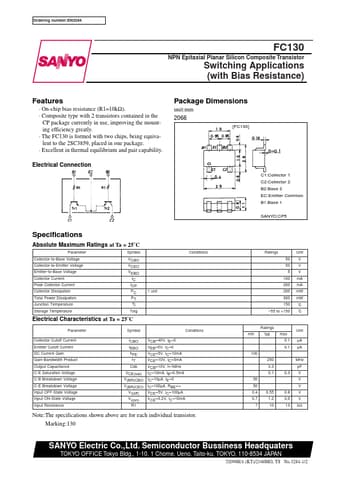

FC130 Datasheet Preview — Preview of FC130 PDF

datasheet Preview Page 2

Datasheet Details

Part number	FC130
Manufacturer	Sanyo Semicon Device
File Size	36.74 KB
Description	NPN Transistor
Datasheet	FC130_SanyoSemiconDevice.pdf

FC130 Product details

Features

On-chip bias resistance (R1=10kΩ).
Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC130 is formed with two chips, being equivalent to the 2SC3859, placed in one package.
Excellent in thermal equilibrium and pair capability. Electrical Connection C1:Collector 1 C2:Collector 2 B2:Base 2 EC:Emitter Common B1:Base 1 SANYO:CP5 Package Dimensions unit:mm 2066 [FC130] Specifications Absolute Maximu.
