FC108 - NPN Transistor

Sanyo Semicon Device

📥 Download Datasheet

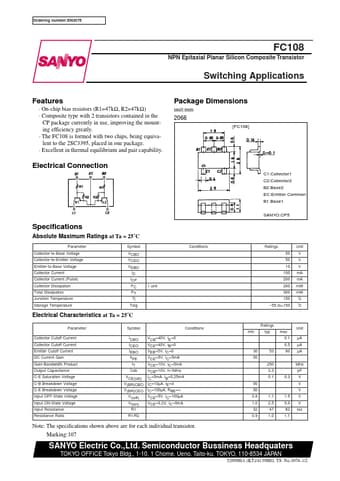

FC108 Datasheet Preview — Preview of FC108 PDF

datasheet Preview Page 2

Datasheet Details

Part number	FC108
Manufacturer	Sanyo Semicon Device
File Size	44.56 KB
Description	NPN Transistor
Datasheet	FC108_SanyoSemiconDevice.pdf

FC108 Product details

Features

On-chip bias resistors (R1=47kΩ, R2=47kΩ).
Composite type with 2 transistors contained in the CP package currently in use, improving the mounting efficiency greatly.
The FC108 is formed with two chips, being equivalent to the 2SC3395, placed in one package.
Excellent in thermal equilibrium and pair capability. Package Dimensions unit:mm 2066 [FC108] Electrical Connection C1:Collector1 C2:Collector2 B2:Base2 EC:Emitter Common B1:Base1 SANYO:CP5 Specifications Absolute Ma.
