IRF630FP - N-CHANNEL MOSFET

IRF630FP Description

IRF630 IRF630FP N-channel 200V - 0.35Ω - 9A TO-220/TO-220FP Mesh overlay™ II Power MOSFET General .
This power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY™ process.

IRF630FP Features

* Type IRF630 IRF630FP VDSS 200V 200V RDS(on)

IRF630FP Applications

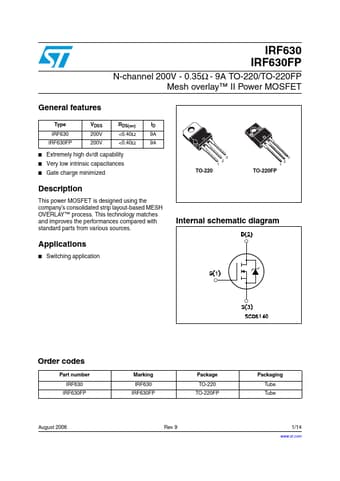

* Switching application 3 2 1 TO-220 3 2 1 TO-220FP Internal schematic diagram Order codes Part number IRF630 IRF630FP August 2006 Marking IRF630 IRF630FP Package TO-220 TO-220FP Rev 9 Packaging Tube Tube 1/14 www. st. com 14 Contents Contents IRF630 - IRF630FP 1 Electrical ratings
