L4921 - VERY LOWDROP ADJUSTABLE REGULATORS

Datasheet Summary

Description

The L4920 and L4921 are adjustable voltage regulators with a verylow voltage drop (0.4V typ.

at 0.4A Tj = 25°C), low quiescent current and comprehensive on-chip protection.

Thesedevices are protectedagainst load dump and field decay transients, polarity reversal and over heating.

📥 Download Datasheet

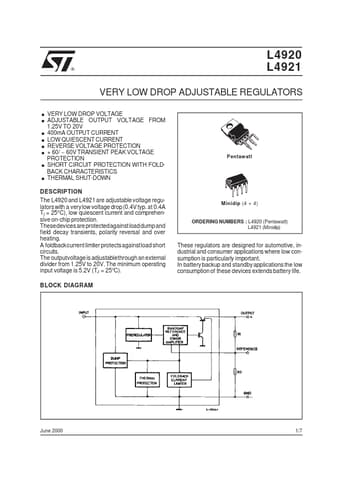

Datasheet preview – L4921

Datasheet Details

Part number L4921
Manufacturer STMicroelectronics
File Size 64.93 KB
Description VERY LOWDROP ADJUSTABLE REGULATORS
Datasheet download datasheet L4921 Datasheet
Additional preview pages of the L4921 datasheet.
