L4923 - WITH RESET AND INHIBIT 5V.1A VERY LOW DROP REGULATOR

Datasheet Summary

Description

The L4923is a high currentmonolithic voltage regulator with very low voltage drop (0.70 V max at 1 A, TJ = 25 °C).

This is advanced information on a new product now in development or undergoing evaluation.

Details are subject to change without notice.

Features

  • he L4923is very suited for the automotive and industrial.

📥 Download Datasheet

Datasheet preview – L4923

Datasheet Details

Part number L4923
Manufacturer STMicroelectronics
File Size 53.11 KB
Description WITH RESET AND INHIBIT 5V.1A VERY LOW DROP REGULATOR
Datasheet download datasheet L4923 Datasheet
Additional preview pages of the L4923 datasheet.

📁 Similar Datasheet

  • L4937 - Dual Low Drop Fixed Output Linear Regulator (ETC)
  • L493EC - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493GC - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493GT - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493IT - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493YC - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493YT - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L4945 - (L4945 - L4951) 5V/8.5V/10V VERY LOW DROP VOLTAGE REGULATORS (SGS-THOMSON)
  • L4949 - MULTIFUNCTION VERY LOW DROPOUT VOLTAGE REGULATOR (Motorola Inc)
  • L4949 - Low Dropout Voltage Regulator (ON Semiconductor)
Other Datasheets by STMicroelectronics
  • L4920 - VERY LOWDROP ADJUSTABLE REGULATORS
  • L4921 - VERY LOWDROP ADJUSTABLE REGULATORS
  • L4922 - VERY LOW DROP REGULATOR WITH RESET
  • L4925 - Very low drop voltage regulator
  • L4901A - DUAL 5V REGULATOR WITH RESET
  • L4902A - DUAL 5V REGULATOR WITH RESET AND DISABLE
  • L4903 - DUAL 5V REGULATOR WITH RESET AND DISABLE FUNCTIONS
  • L4904A - DUAL 5V REGULATOR WITH RESET

Full PDF Text Transcription

Click to expand full text

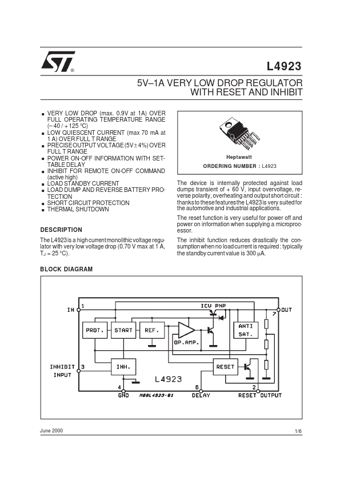

® L4923 5V–1A VERY LOW DROP REGULATOR WITH RESET AND INHIBIT . . . . . . . . . VERY LOW DROP (max. 0.9V at 1A) OVER FULL OPERATING TEMPERATURE RANGE (– 40 / + 125 °C) LOW QUIESCENT CURRENT (max 70 mA at 1 A) OVER FULL T RANGE PRECISEOUTPUT VOLTAGE(5V ± 4%) OVER FULL T RANGE POWER ON-OFF INFORMATION WITH SETTABLE DELAY INHIBIT FOR REMOTE ON-OFF COMMAND (active high) LOAD STANDBY CURRENT LOAD DUMP AND REVERSE BATTERY PROTECTION SHORT CIRCUIT PROTECTION THERMAL SHUTDOWN Heptawatt ORDERING NUMBER : L4923 The device is internally protected against load dumps transient of + 60 V, input overvoltage, reverse polarity, overheating and output short circuit : thanks to these featuresthe L4923is very suited for the automotive and industrial applications.
