L4922 Datasheet, Reset, STMicroelectronics

L4922 Features

• Reset the device is particularly suited when the power dissipation must be limited as, for example, in automotive or industrial applications supplied by battery. The three gain stages (operat

PDF File Details

Part number:

L4922

Manufacturer:

STMicroelectronics ↗

File Size:

50.65kb

Download:

📄 Datasheet

Description:

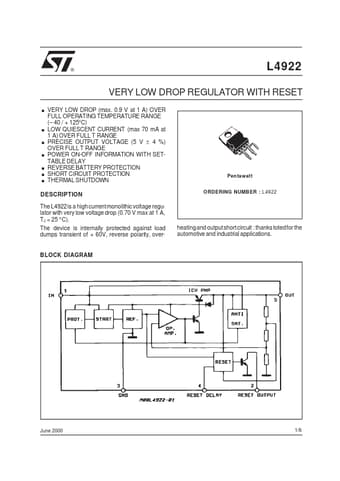

Very low drop regulator with reset. The L4922is a high currentmonolithic voltage regulator with very low voltage drop (0.70 V max at 1 A, TJ = 25 °C). The device is inte

L4922 Application

• Applications BLOCK DIAGRAM June 2000 This is advanced information on a new product now in development or undergoing evaluation. Details are subje
