L4925 - Very low drop voltage regulator

Datasheet Summary

Description

The L4925 is a monolithic integrated 5 V voltage regulator with a very low dropout output and additional functions such as power-on reset and programmable reset delay time.

It is designed for supplying microcomputer controlled systems especially in automotive applications.

Table 1.

Features

  • Operating DC supply voltage range 6 V to 28 V.
  • Transient supply voltage up to 40 V.
  • Extremely low quiescent current.
  • High precision output voltage.
  • Output current capability up to 500 mA.
  • Very low dropout voltage less than 0.6 V.
  • Reset circuit sensing the output voltage.
  • Programmable reset pulse delay with external capacitor.
  • Thermal shutdown and short circuit protections PowerSO-20.

📥 Download Datasheet

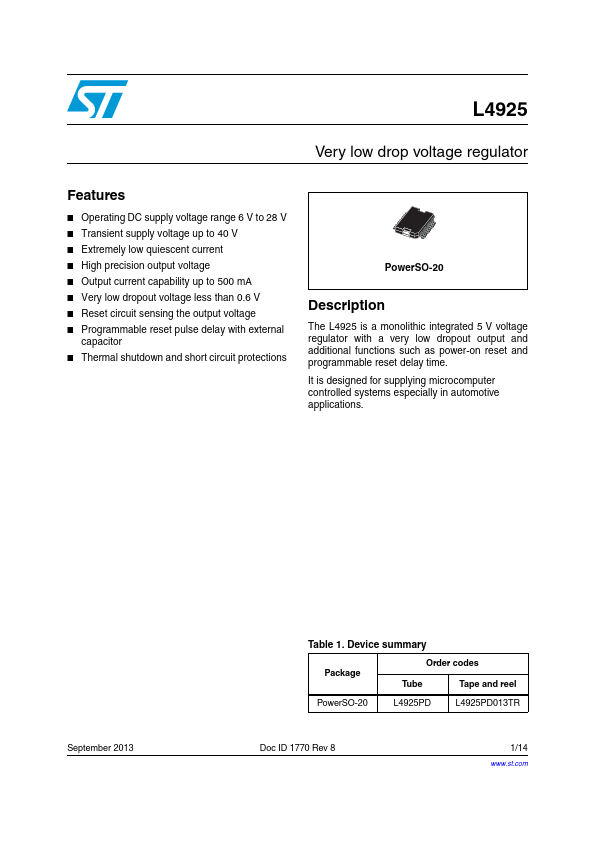

Datasheet preview – L4925
