L9950

Door actuator driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L9950 IC DRIVER DOOR ACTUATOR PWRSO-36 DigiKey 0 0
$0

L9950 Datasheet (555.37 KB)

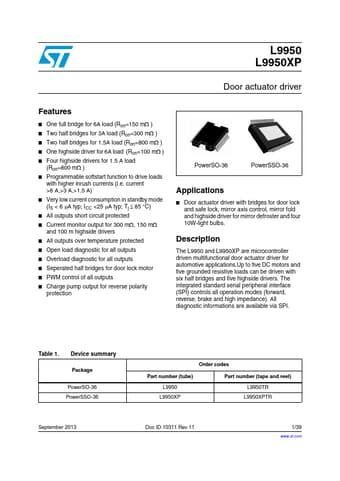

Preview of L9950 PDF Datasheet

Datasheet Details

Part number:

L9950

Manufacturer:

STMicroelectronics ↗

File Size:

555.37 KB

Description:

Door actuator driver.

L9950 Features

* One full bridge for 6A load (Ron=150 m )

* Two half bridges for 3A load (Ron=300 m )

* Two half bridges for 1.5A load (Ron=800 m )

* One highside driver for 6A load (Ron=100 m )

* Four highside drivers for 1.5 A load (Ron=800 m )

* Programmable softstart function to dr

L9950 General Description

The L9950 and L9950XP are microcontroller driven multifunctional door actuator driver for automotive applications.Up to five DC motors and five grounded resistive loads can be driven with six half bridges and five highside drivers. The integrated standard serial peripheral interface (SPI) controls a.
