L9950XP

Door actuator driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L9950XP IC DOOR ACTUATOR DVR POWERSSO-36 DigiKey 0 0
$0

L9950XP Datasheet (555.37 KB)

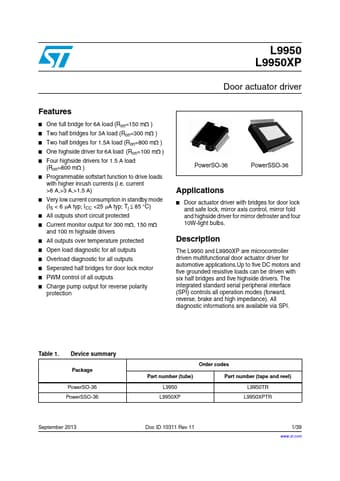

Preview of L9950XP PDF

Datasheet Details

Part number:

L9950XP

Manufacturer:

STMicroelectronics ↗

File Size:

555.37 KB

Description:

Door actuator driver.

L9950XP Features

* One full bridge for 6A load (Ron=150 m )

* Two half bridges for 3A load (Ron=300 m )

* Two half bridges for 1.5A load (Ron=800 m )

* One highside driver for 6A load (Ron=100 m )

* Four highside drivers for 1.5 A load (Ron=800 m )

* Programmable softstart function to dr

L9950XP General Description

The L9950 and L9950XP are microcontroller driven multifunctional door actuator driver for automotive applications.Up to five DC motors and five grounded resistive loads can be driven with six half bridges and five highside drivers. The integrated standard serial peripheral interface (SPI) controls a.
