L9953

Door actuator driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L9953 IC DVR DOOR ACTUATOR POWERSO-36 DigiKey 0 310 units
$6.69

L9953 Datasheet (390.95 KB)

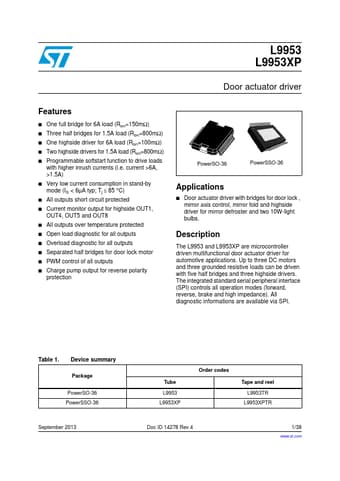

Preview of L9953 PDF

Datasheet Details

Part number:

L9953

Manufacturer:

STMicroelectronics ↗

File Size:

390.95 KB

Description:

Door actuator driver.

L9953 Features

* One full bridge for 6A load (Ron=150mΩ)

* Three half bridges for 1.5A load (Ron=800mΩ)

* One highside driver for 6A load (Ron=100mΩ)

* Two highside drivers for 1.5A load (Ron=800mΩ)

* Programmable softstart function to drive loads with higher inrush currents (i.e. current >6A,

L9953 General Description

The L9953 and L9953XP are microcontroller driven multifunctional door actuator driver for automotive applications. Up to three DC motors and three grounded resistive loads can be driven with five half bridges and three highside drivers. The integrated standard serial peripheral interface (SPI) contr.
