L9952GXP

Power Management

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L9952GXPTR IC PWR MANAGEMENT SYST PWRSSO36 DigiKey 0 3000 units
$2.24

L9952GXP Datasheet (652.81 KB)

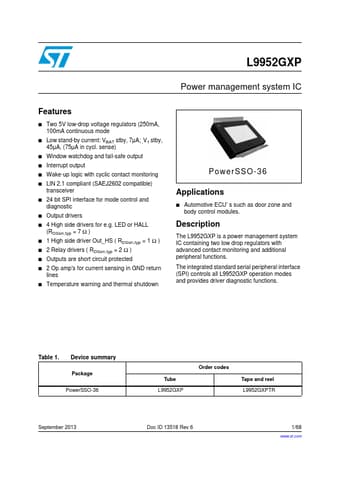

Preview of L9952GXP PDF

Datasheet Details

Part number:

L9952GXP

Manufacturer:

STMicroelectronics ↗

File Size:

652.81 KB

Description:

Power management.

L9952GXP Features

* Two 5V low-drop voltage regulators (250mA, 100mA continuous mode

* Low stand-by current: VBAT stby, 7µA; ,V1 stby, 45µA, (75µA in cycl. sense)

* Window watchdog and fail-safe output

* Interrupt output

* Wake-up logic with cyclic contact monitoring

* LIN 2.1 compliant (SAEJ2

L9952GXP General Description

The L9952GXP is a power management system IC containing two low drop regulators with advanced contact monitoring and additional peripheral functions. The integrated standard serial peripheral interface (SPI) controls all L9952GXP operation modes and provides driver diagnostic functions. Table 1. De.
