L9954

Door actuator driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L9954 IC DVR DOOR ACTUATOR POWERSO-36 DigiKey 0 310 units
$5.92

L9954 Datasheet (384.34 KB)

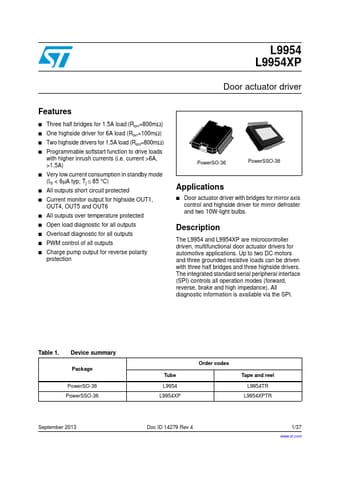

Preview of L9954 PDF Datasheet

Datasheet Details

Part number:

L9954

Manufacturer:

STMicroelectronics ↗

File Size:

384.34 KB

Description:

Door actuator driver.

L9954 Features

* Three half bridges for 1.5A load (Ron=800mΩ)

* One highside driver for 6A load (Ron=100mΩ)

* Two highside drivers for 1.5A load (Ron=800mΩ)

* Programmable softstart function to drive loads with higher inrush currents (i.e. current >6A, >1.5A)

* Very low current consumption in s

L9954 General Description

The L9954 and L9954XP are microcontroller driven, multifunctional door actuator drivers for automotive applications. Up to two DC motors and three grounded resistive loads can be driven with three half bridges and three highside drivers. The integrated standard serial peripheral interface (SPI) cont.
