M93C46-A125 - MICROWIRE serial EEPROM

M93C46-A125 Description

M93Cx6-A125 Automotive 16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit (8-bit or 16-bit wide) MICROWIRE™ serial EEPROM Datasheet - production data SO8 (M.

M93C46-A125 Features

* Industry standard MICROWIRE™ bus
* Memory array: 1 Kb, 2 Kb, 4 Kb, 8 Kb or 16 Kb
* Dual organization: by word (x16) or byte (x8)
* Write
* Byte within 4 ms
* Word within 4 ms
* READY/BUSY signal during programming
* 2 MHz clock rate

📥 Download Datasheet

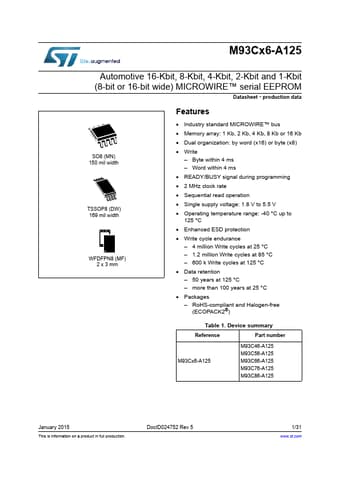

Preview of M93C46-A125 PDF
datasheet Preview Page 2 datasheet Preview Page 3
