M93C46-R

EEPROM

M93C46-R Features

* Industry standard MICROWIRE™ bus

* Single supply voltage:

* 2.5 V to 5.5 V for M93Cx6-W

* 1.8 V to 5.5 V for M93Cx6-R

* Dual organization: by word (x16) or byte (x8)

* Programming instructions that work on: byte, word or entire memory

* Self-

M93C46-R General Description

1 Description The M93C46 (1 Kbit), M93C56 (2 Kbit), M93C66 (4 Kbit), M93C76 (8 Kbit) and M93C86 (16 Kbit) are electrically erasable programmable memory (EEPROM) devices accessed through the MICROWIRE™ bus protocol. The memory array can be configured either in bytes (x8b) or in words (x16b). The M.

M93C46-R Datasheet (440.37 KB)

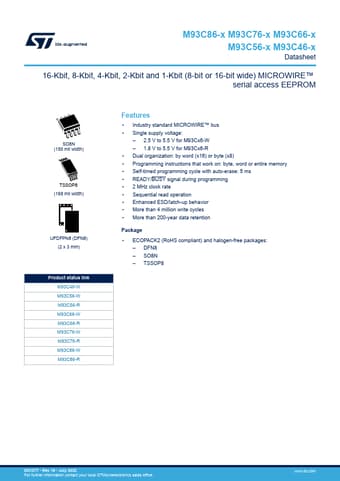

Preview of M93C46-R PDF

Datasheet Details

Part number:

M93C46-R

Manufacturer:

STMicroelectronics ↗

File Size:

440.37 KB

Description:

Eeprom.
M93C86-x M93C76-x M93C66-x M93C56-x M93C46-x Datasheet 16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit (8-bit or 16-bit wide) MICROWIRE™ serial access EEPR.
