M93C56-DRE, M93C46-DRE Datasheet - STMicroelectronics

M93C56-DRE, M93C46-DRE, EEPROM

M93Cx6-DRE 16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit (8-bit or 16-bit wide) MICROWIRE™ serial EEPROM 105 °C operation Datasheet - production data S.

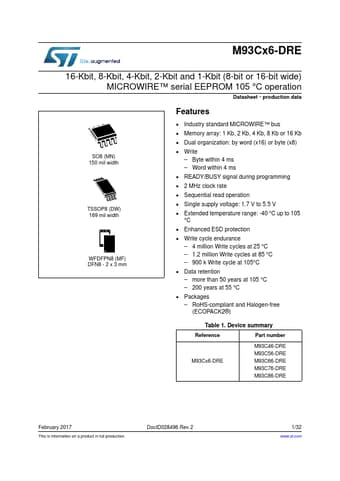

datasheet Preview Page 1 from Datasheet4u.com

M93C46-DRE-STMicroelectronics.pdf

M93C56-DRE Datasheet Preview — This datasheet PDF includes multiple part numbers: M93C56-DRE, M93C46-DRE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M93C56-DRE, M93C46-DRE

Manufacturer:

STMicroelectronics ↗

File Size:

1.06 MB

Description:

EEPROM

Note:

This datasheet PDF includes multiple part numbers: M93C56-DRE, M93C46-DRE.
Please refer to the document for exact specifications by model.

Features

* Industry standard MICROWIRE™ bus
* Memory array: 1 Kb, 2 Kb, 4 Kb, 8 Kb or 16 Kb
* Dual organization: by word (x16) or byte (x8)
* Write
* Byte within 4 ms
* Word within 4 ms
* READY/BUSY signal during programming
* 2 MHz clock rate
