SCT060HU75G3AG - Automotive-grade silicon carbide Power MOSFET

STMicroelectronics

SCT060HU75G3AG Description

SCT060HU75G3AG Datasheet Automotive-grade silicon carbide Power MOSFET 750 V, 58 mΩ typ., 30 A in an HU3PAK package TAB Gate (1) Driver source (2) 7.
This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

SCT060HU75G3AG Features

* Order code SCT060HU75G3AG VDS 750 V RDS(on) typ. 58 mΩ ID 30 A
* AEC-Q101 qualified
* Very low RDS(on) over the entire temperature range
* High speed switching performances
* Very fast and robust intrinsic body diode
* Source sensing pin for increased effi

SCT060HU75G3AG Applications

* Main inverter (electric traction)
* DC/DC converter for EV/HEV

📥 Download Datasheet

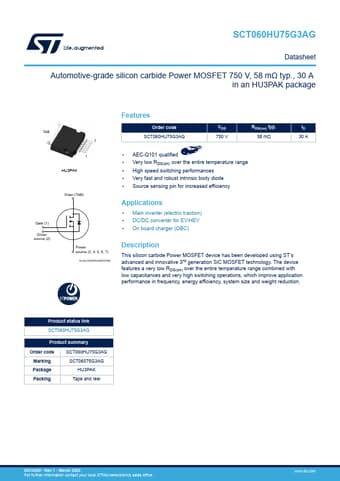

SCT060HU75G3AG Datasheet Preview — Preview of SCT060HU75G3AG PDF

Datasheet Details

Part number: SCT060HU75G3AG
Manufacturer: STMicroelectronics ↗
File Size: 615.24 KB
Datasheet: SCT060HU75G3AG-STMicroelectronics.pdf
Description: Automotive-grade silicon carbide Power MOSFET
