SCT060W75G3AG Datasheet, Power Mosfet, STMicroelectronics

Automotive-grade silicon carbide power mosfet

📥 Download PDF (197.49 KB)

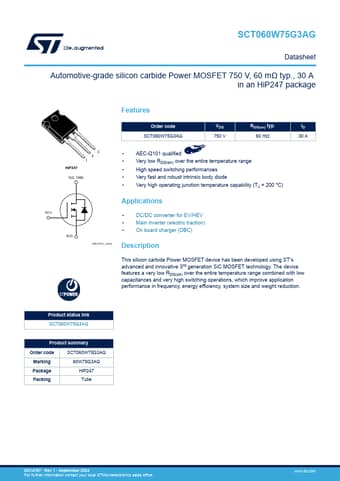

SCT060W75G3AG Datasheet Preview Page 1 — Preview of SCT060W75G3AG Datasheet

PDF File Details

Part number:

SCT060W75G3AG

Manufacturer:

STMicroelectronics ↗

File Size:

197.49 KB

Download:

📄 Download the SCT060W75G3AG Datasheet PDF

Description:

Automotive-grade silicon carbide power mosfet.

This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFE.

✔ SCT060W75G3AG Features

Order code SCT060W75G3AG VDS 750 V RDS(on) typ. 60 mΩ ID 30 A HiP247 3 2 1 D(2, TAB)
AEC-Q101 qualified
Very low RDS(on) over the entire temperature range

✔ SCT060W75G3AG Application

DC/DC converter for EV/HEV
Main inverter (electric traction)
On board charger (OBC) AM01475v1_noZen
