STB120NF10T4

N-channel Power MOSFET

STB120NF10T4 Features

* Order code STB120NF10T4 STP120NF10 STW120NF10 VDS 100 V RDS(on) max. 10.5 mΩ ID 110 A

* Exceptional dv/dt capability

* 100% avalanche tested

* Low gate charge Applications

* Switching applications Description These Power MOSFETs have been developed using STMicroelectronics’ uniqu

STB120NF10T4 General Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and c.

STB120NF10T4 Datasheet (831.13 KB)

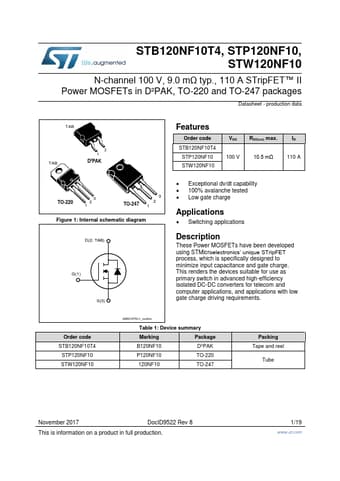

Preview of STB120NF10T4 PDF

Datasheet Details

Part number:

STB120NF10T4

Manufacturer:

STMicroelectronics ↗

File Size:

831.13 KB

Description:

N-channel power mosfet.
STB120NF10T4, STP120NF10, STW120NF10 N-channel 100 V, 9.0 mΩ typ., 110 A STripFET™ II Power MOSFETs in D²PAK, TO-220 and TO-247 packages Datasheet - p.
