STB141NF55-1, STB141NF55 N-channel MOSFET

STMicroelectronics

Description

STB141NF55 - STB141NF55-1 STP141NF55 N-channel 55V - 0.0065Ω - 80A - D2PAK - I2PAK - TO-220 STripFET™ II Power MOSFET .
This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size” strip-based process.

📥 Download Datasheet

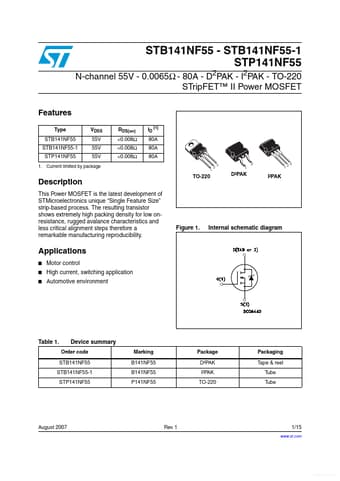

STB141NF55-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: STB141NF55-1, STB141NF55. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STB141NF55-1, STB141NF55
Manufacturer: STMicroelectronics ↗
File Size: 380.17 KB
Datasheet: STB141NF55-STMicroelectronics.pdf
Description: N-channel MOSFET
Note: This datasheet PDF includes multiple part numbers: STB141NF55-1, STB141NF55.
Please refer to the document for exact specifications by model.

Features

* Type STB141NF55 STB141NF55-1 STP141NF55 VDSS 55V 55V 55V RDS(on)

Applications

* Motor control High current, switching application Automotive environment Table 1. Device summary Order code STB141NF55 Marking B141NF55 B141NF55 P141NF55 Package D²PAK I²PAK TO-220 Packaging Tape & reel Tube Tube STB141NF55-1 STP141NF55 August 2007 Rev 1 1/15 www. st. com Fre
