STB14NF10 N-CHANNEL POWER MOSFET

This MOSFET series realized with STMicroelectronics INTERNAL SCHEMATIC DIAGRAM unique STripFET™ process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highwww.DataSheet4U.com efficiency, high-frequency isolated DC-.

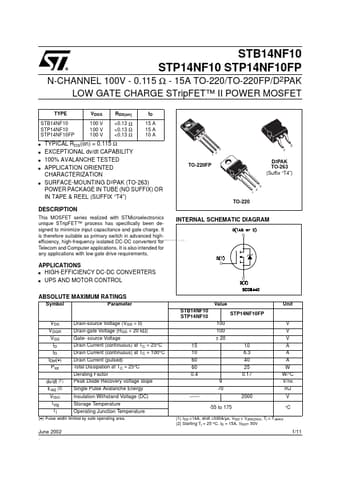

STB14NF10 STP14NF10 STP14NF10FP N-CHANNEL 100V - 0.115 Ω - 15A TO-220/TO-220FP/D2PAK LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE STB14NF10 STP14NF10 STP14NF10FP s s s s VDSS 100 V 100 V 100 V RDS(on) <0.13 Ω <0.13 Ω <0.13 Ω ID 15 A 15 A 10 A 3 1 2 s TYPICAL RDS(on) = 0.115 Ω EXCEPTIONAL dv/dt CAPABILITY 100% AVALANCHE TESTED APPLICATION ORIENTED CHARACTERIZATION SURFACE-MOUNTING D2PAK (TO-263) POWER PACKAGE IN TUBE (NO SUFFIX) OR IN TAPE & REEL (SUFFIX “T4”) 3 1 TO-220FP D2PAK TO-263 .
