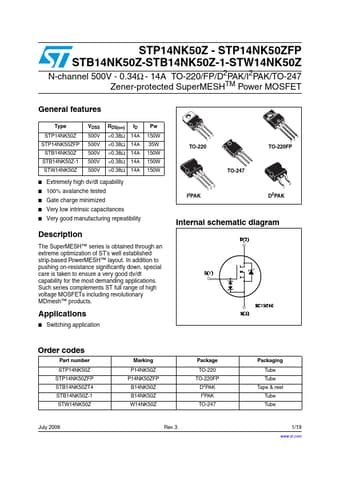

STB14NK50Z Datasheet, Mosfet, ST Microelectronics

STB14NK50Z Features

• Mosfet Type STP14NK50Z STP14NK50ZFP STB14NK50Z STB14NK50Z-1 STW14NK50Z VDSS 500V 500V 500V 500V 500V RDS(on) ID <0.38Ω 14A <0.38Ω 14A <0.38Ω 14A <0.38Ω 14A <0.38Ω 14A Pw 150W 35W 150W 150W

PDF File Details

Part number:

STB14NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

619.45kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

STB14NK50Z Application

• Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
• Switchi
