N-channel mosfet.

STB14NM50N, N-Channel MOSFET

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

It is therefore suitable for the most

STB14NM50N Features

* Order code VDS @ TJmax RDS(on) max ID STB14NM50N 550 V 0.32 Ω 12 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

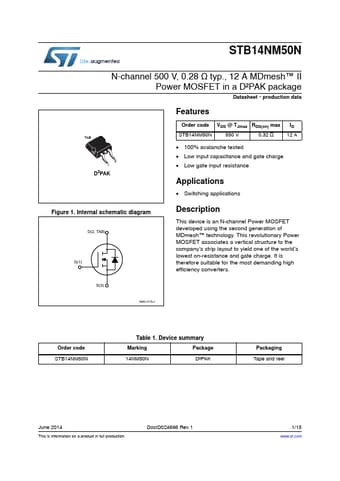

* Switching applications Figure 1. Internal schematic diagram ' Ć7$%

*  Descrip
