STB47N50DM6AG Datasheet - STMicroelectronics

Automotive-grade N-channel MOSFET

STB47N50DM6AG Features

* Order code STB47N50DM6AG VDS 500 V RDS(on) max. 71 mΩ ID 38 A

* AEC-Q101 qualified

* Fast-recovery body diode

* Lower RDS(on) per area vs previous generation

* Low gate charge, input capacitance and resistance

* 100% avalanche tested

* Extremely hi

STB47N50DM6AG General Description

This high-voltage N-channel Power MOSFET is part of the MDmesh™ DM6 fastrecovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching be.

STB47N50DM6AG Datasheet (431.83 KB)

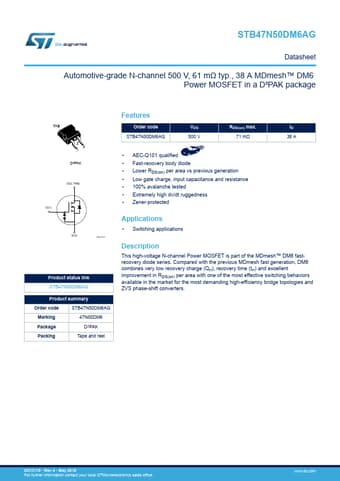

STB47N50DM6AG Datasheet Preview — Preview of STB47N50DM6AG PDF

Datasheet Details

Part number:

STB47N50DM6AG

Manufacturer:

STMicroelectronics ↗

File Size:

431.83 KB

Description:

Automotive-grade n-channel mosfet.
STB47N50DM6AG Datasheet Automotive-grade N-channel 500 V, 61 mΩ typ., 38 A MDmesh™ DM6 Power MOSFET in a D²PAK package TAB 2 3 1 D²PAK D(2, TAB) G(1).
