STB80NF55-06-1, N-CHANNEL POWER MOSFET

STB80NF55-06 - STB80NF55-06-1 STP80NF55-06 - STP80NF55-06FP N-channel 55V - 0.005Ω - 80A - TO-220 /FP - I2PAK - D2PAK STripFET™ II Power MOSFET Genera.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

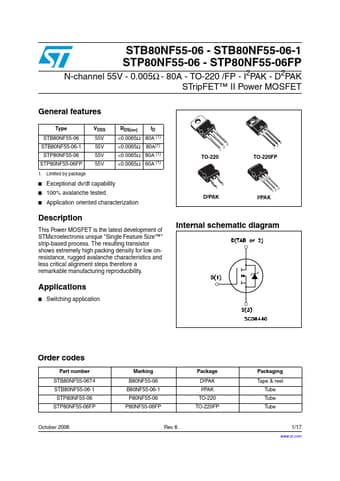

datasheet Preview Page 1 from Datasheet4u.com

STB80NF55-06-1-STMicroelectronics.pdf

STB80NF55-06-1 Datasheet Preview — Preview of STB80NF55-06-1 PDF

Datasheet Details

Part number:

STB80NF55-06-1

Manufacturer:

STMicroelectronics ↗

File Size:

423.80 KB

Description:

N-CHANNEL POWER MOSFET

Features

* Type STB80NF55-06 STB80NF55-06-1 STP80NF55-06 STP80NF55-06FP 1. Limited by package
* VDSS 55V 55V 55V 55V RDS(on)

Applications

* Switching application Order codes Part number STB80NF55-06T4 STB80NF55-06-1 STP80NF55-06 STP80NF55-06FP Marking B80NF55-06 B80NF55-06-1 P80NF55-06 P80NF55-06FP Package D²PAK I²PAK TO-220 TO-220FP Packaging Tape & reel Tube Tube Tube October 2006 Rev 8 1/17 www. st. com 17 Contents STB80NF
