STB80NF55-08AG, N-CHANNEL POWER MOSFET

STB80NF55-08AG, STP80NF55-08AG Automotive-grade N-channel 55 V, 6.5 mΩ typ.,80 A STripFET™ Power MOSFETs in D²PAK and TO-220 packages Datasheet These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitanc.

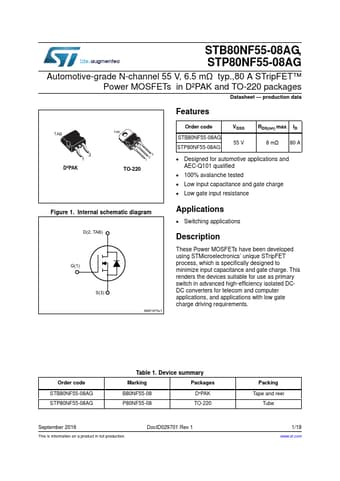

datasheet Preview Page 1 from Datasheet4u.com

STB80NF55-08AG-STMicroelectronics.pdf

STB80NF55-08AG Datasheet Preview — Preview of STB80NF55-08AG PDF

Datasheet Details

Part number:

STB80NF55-08AG

Manufacturer:

STMicroelectronics ↗

File Size:

0.95 MB

Description:

N-CHANNEL POWER MOSFET

Features

* TAB 3 1 D2PAK TAB 3 2 1 TO-220 Order code STB80NF55-08AG STP80NF55-08AG VDSS 55 V RDS(on) max ID 8 mΩ 80 A

Applications

* and AEC-Q101 qualified
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance Figure 1. Internal schematic diagram '7$%
* 6 $0Y Applications
