STB80NF55-06T - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

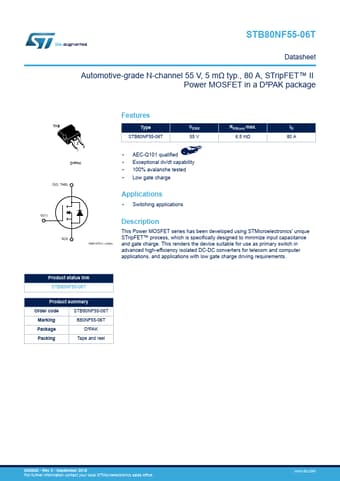

STB80NF55-06T Datasheet Preview — Preview of STB80NF55-06T PDF

Datasheet Details

Part number: STB80NF55-06T
Manufacturer: STMicroelectronics ↗
File Size: 561.15 KB
Datasheet: STB80NF55-06T-STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET

STB80NF55-06T Product details

Description

This Power MOSFET series has been developed using STMicroelectronics' unique STripFET™ process, which is specifically designed to minimize input capacitance and gate charge.

Features

Type STB80NF55-06T VDSS 55 V RDS(on) max. 6.5 mΩ ID 80 A.
AEC-Q101 qualified.
Exceptional dv/dt capability.
100% avalanche tested.
Low gate charge.
