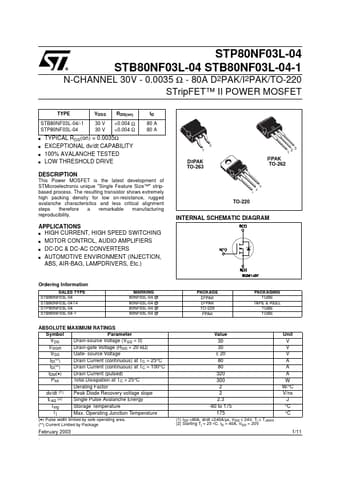

STB80NF03L-04 Datasheet, Mosfet, ST Microelectronics

PDF File Details

Part number:

STB80NF03L-04

Manufacturer:

STMicroelectronics ↗

File Size:

351.63kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power Mosfet is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process. The resulting tr

STB80NF03L-04 Application

• Applications s HIGH CURRENT, HIGH SPEED SWITCHING s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT (INJECTION,
