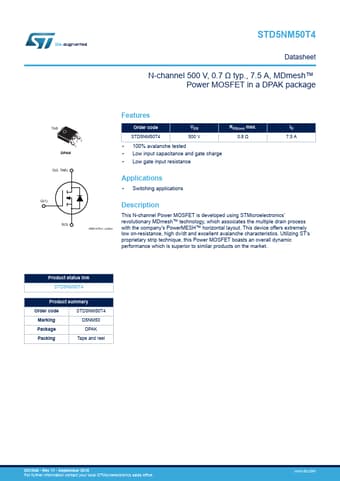

STD5NM50T4 Datasheet, Mosfet, STMicroelectronics

STD5NM50T4 Features

• Mosfet Order code VDS RDS(on) max. STD5NM50T4 500 V 0.8 Ω
• 100% avalanche tested
• Low input capacitance and gate charge
• Low gate input resistance Applicatio

PDF File Details

Part number:

STD5NM50T4

Manufacturer:

STMicroelectronics ↗

File Size:

446.46kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-channel Power MOSFET is developed using STMicroelectronics' revolutionary MDmesh™ technology, which associates the multiple dr

STD5NM50T4 Application

• Applications
• Switching applications ID 7.5 A G(1) S(3) AM01475v1_noZen Description This N-channel Power MOSFET is developed using STMi
