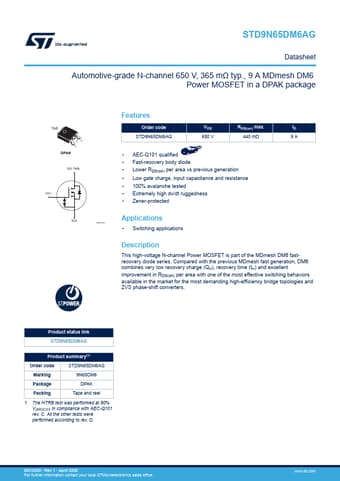

STD9N65DM6AG Datasheet, Mosfet, STMicroelectronics

STD9N65DM6AG Features

• Mosfet Order code STD9N65DM6AG VDS RDS(on) max. ID 650 V 440 mΩ 9A
• AEC-Q101 qualified
• Fast-recovery body diode
• Lower RDS(on) per area vs previous generatio

PDF File Details

Part number:

STD9N65DM6AG

Manufacturer:

STMicroelectronics ↗

File Size:

332.31kb

Download:

📄 Datasheet

Description:

Automotive-grade n-channel power mosfet. This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series. Compared with the previous MDmesh fast

STD9N65DM6AG Application

• Applications
• Switching applications Description This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode seri
