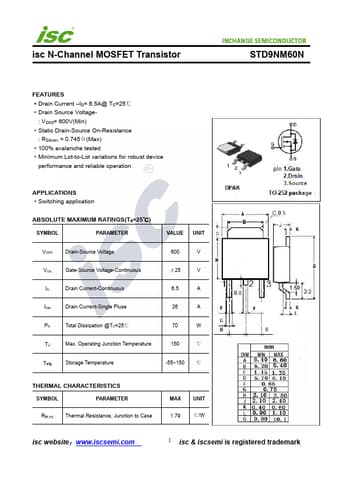

STD9NM60N Datasheet, Mosfet, INCHANGE

STD9NM60N Features

• Mosfet
• Drain Current
    –ID= 6.5A@ TC=25℃
• Drain Source Voltage- : VDSS= 600V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.745Ω(Max)
• 100

PDF File Details

Part number:

STD9NM60N

Manufacturer:

INCHANGE

File Size:

275.59kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

STD9NM60N Application

• Applications
• Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VG
