STD11NM60N Datasheet, Mosfet, INCHANGE

STD11NM60N Features

  • Mosfet
  • Drain Current ID= 10A@ TC=25℃
  • Drain Source Voltage- : VDSS=600V(Min)
  • Fast Switching Speed
  • 100% avalanche tested
  • Minimum Lot-to-Lot variation

PDF File Details

Part number:

STD11NM60N

Manufacturer:

INCHANGE

File Size:

273.86kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

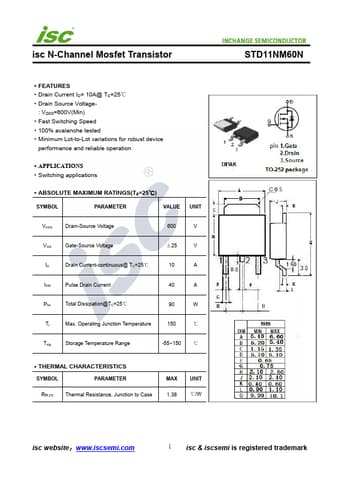

Datasheet Preview: STD11NM60N 📥 Download PDF (273.86kb)
Page 2 of STD11NM60N

STD11NM60N Application

  • Applications
  • Switching applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage
