STDP9310 - Premium high resolution multimedia monitor controller

STMicroelectronics

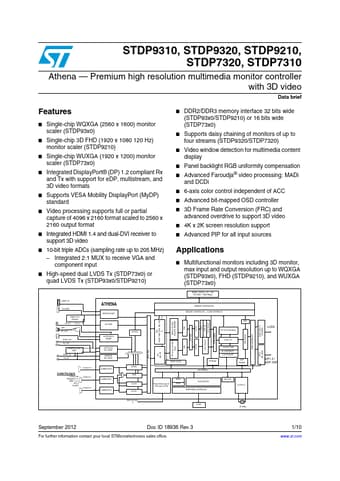

STDP9310 Datasheet Preview — Preview of STDP9310 PDF

Datasheet Details

Part number	STDP9310
Manufacturer	STMicroelectronics ↗
File Size	199.30 KB
Description	Premium high resolution multimedia monitor controller
Datasheet	STDP9310-STMicroelectronics.pdf

STDP9310 Product details

Description

1 Description STDP9310, STDP9320, STDP9210, STDP7310, STDP7320 The STDP93x0, STDP9210, and STDP73x0 (i.e.Athena) ICs are a series of innovative System-on-Chip (SoC) controllers designed for multifunctional monitors with a maximum resolution of up to 2560 x 1600 (STDP93x0), 1920 x 1200 (STDP73x0), and 120 Hz FHD (STDP9210).The Athena chips are the first ICs to combine a DP 1.2 receiver/transmitter, HDMI 1.4 receiver, and dual DVI receiver to support 3D video source from graphics cards and Blu

Features

Single-chip WQXGA (2560 x 1600) monitor scaler (STDP93x0).
Single-chip 3D FHD (1920 x 1080 120 Hz) monitor scaler (STDP9210).
Single-chip WUXGA (1920 x 1200) monitor scaler (STDP73x0).
Integrated DisplayPort® (DP) 1.2 compliant Rx and Tx with support for eDP, multistream, and 3D video formats.
Supports VESA Mobility DisplayPort (MyDP) standard.
Video processing supports full or partial capture of 4096 x 2160 format scaled to 2560 x 2160 output format.
Integrat.
