STE26NA90 Datasheet - STMicroelectronics

STE26NA90 ISOTOP FAST POWER MOSFET

www.DataSheet4U.com ® STE26NA90 N - CHANNEL 900V - 0.25Ω - 26A - ISOTOP FAST POWER MOSFET TYPE STE26NA90 s s s s s s V DSS 900 V R DS(on) < 0.3 Ω ID 26 A TYPICAL RDS(on) = 0.25 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED LOW INTRINSIC CAPACITANCE GATE CHARGE MINIMIZED REDUCED VOLTAGE SPREAD APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTER FOR WELDING EQUIPMENT AND UNINTERRUPTABLE POWER SUPPLY AND MOTOR DRIVE ISOTOP IN.

STE26NA90_STMicroelectronics.pdf

Preview of STE26NA90 PDF

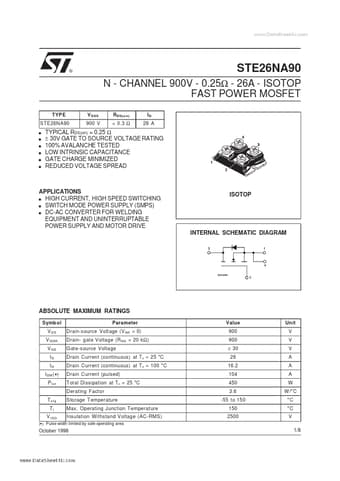

STE26NA90 Datasheet Preview Page 2 STE26NA90 Datasheet Preview Page 3

Datasheet Details

Part number:

STE26NA90

Manufacturer:

STMicroelectronics ↗

File Size:

114.21 KB

Description:

Isotop fast power mosfet.
