STF13N60M2

N-CHANNEL POWER MOSFET

STMicroelectronics

STF13N60M2 Features

* 3 2 1 TO-220FP 1 23 I2PAKFP (TO-281) Figure 1. Internal schematic diagram AM15572v1 Order codes VDS @ TJmax RDS(on) max ID STF13N60M2 STFI13N60M2 650 V 0.38 Ω 11 A

* Extremely low gate charge

* Lower RDS(on) x area vs previous generation

* Low gate input resistance

STF13N60M2 General Description

These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg. These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charge. They are therefo.

STF13N60M2 Datasheet (590.30 KB)

STF13N60M2 Datasheet Preview — Preview of STF13N60M2 PDF

Datasheet Details

Part number:

STF13N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

590.30 KB

Description:

N-channel power mosfet.

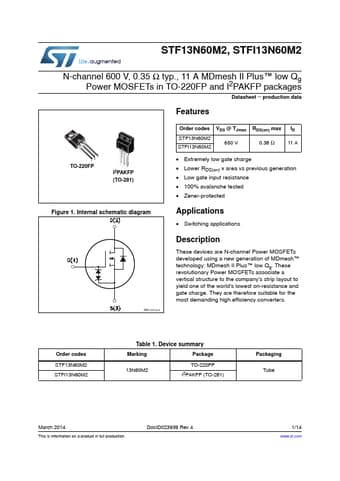

STF13N60M2, STFI13N60M2 N-channel 600 V, 0.35 Ω typ., 11 A MDmesh II Plus™ low Qg 2 Power MOSFETs in TO-220FP and I PAKFP packages Datasheet

.
