STF13N65M2

N-channel Power MOSFET

STMicroelectronics

STF13N65M2 Features

* Order code STF13N65M2 STFI13N65M2 VDS RDS(on) max 650 V 0.43 Ω ID 10A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Figure 1. Internal schematic diagram Applications

* Switching appl

STF13N65M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. Or.

STF13N65M2 Datasheet (535.34 KB)

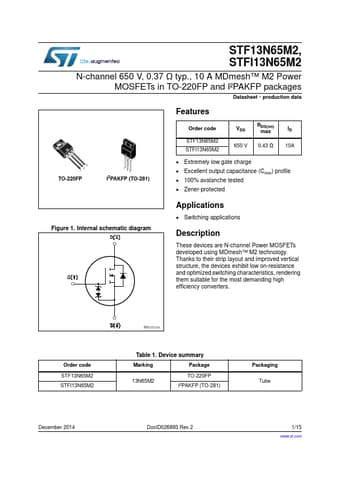

STF13N65M2 Datasheet Preview — Preview of STF13N65M2 PDF

Datasheet Details

Part number:

STF13N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

535.34 KB

Description:

N-channel power mosfet.
STF13N65M2, STFI13N65M2 N-channel 650 V, 0.37 Ω typ., 10 A MDmesh™ M2 Power MOSFETs in TO-220FP and I²PAKFP packages Datasheet - production data 3 2 .
