STF35N60DM2 - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

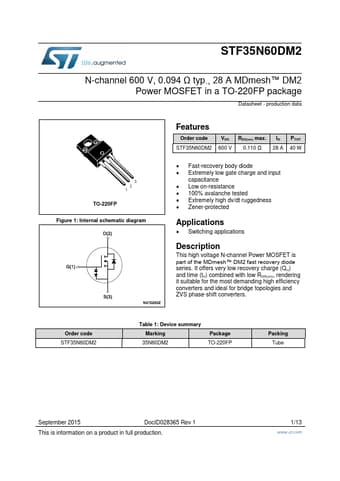

STF35N60DM2 Datasheet Preview — Preview of STF35N60DM2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STF35N60DM2
Manufacturer	STMicroelectronics
File Size	551.34 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STF35N60DM2-STMicroelectronics.pdf

STF35N60DM2 Product details

Description

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series.

Features

Order code VDS RDS(on) max. ID PTOT STF35N60DM2 600 V 0.110 Ω 28 A 40 W.
Fast-recovery body diode.
Extremely low gate charge and input capacitance.
Low on-resistance.
100% avalanche tested.
Extremely high dv/dt ruggedness.
Zener-protected.
