STF30N10F7

N-CHANNEL POWER MOSFET

STF30N10F7 Features

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness Applications

* Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gat

STF30N10F7 General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STF30N10F7 Table 1: Device summary Marking .

STF30N10F7 Datasheet (539.52 KB)

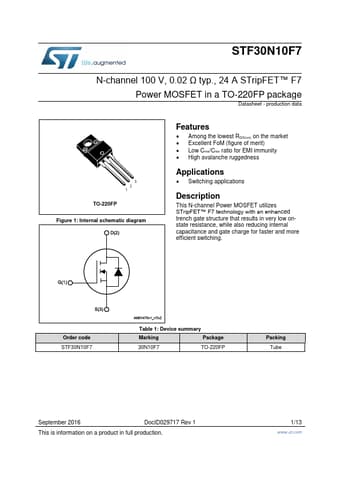

Preview of STF30N10F7 PDF

Datasheet Details

Part number:

STF30N10F7

Manufacturer:

STMicroelectronics ↗

File Size:

539.52 KB

Description:

N-channel power mosfet.
STF30N10F7 N-channel 100 V, 0.02 Ω typ., 24 A STripFET™ F7 Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Interna.
