STF34NM60N - Power MOSFET

ST Microelectronics

📥 Download Datasheet

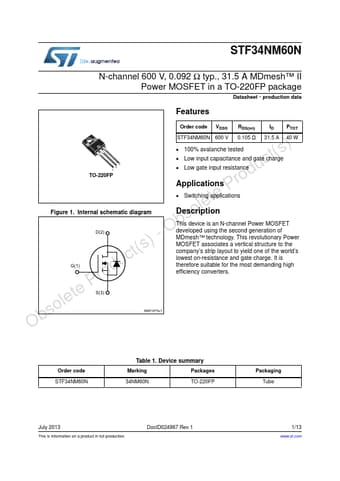

STF34NM60N Datasheet Preview — Preview of STF34NM60N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STF34NM60N
Manufacturer	STMicroelectronics
File Size	869.17 KB
Description	Power MOSFET
Datasheet	STF34NM60N_STMicroelectronics.pdf

STF34NM60N Product details

Description

These devices are made using the second generation of MDmeshTM technology.

Features

Type STF34NM60N STP34NM60N STW34NM60N.
VDSS 600 V 600 V 600 V RDS(on) max. 0.105 Ω 0.105 Ω 0.105 Ω ID 29 A 29 A 29 A PTOT 40 W 210 W 210 W 2 1 3 1 3 2 TO-247 TO-220 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 3 1 2 TO-220FP.
